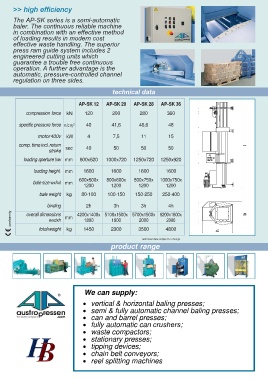

Page 11 - Higgins Balers Ltd with Austropressen Brochure

>> high efficiency
The AP-SK series is a semi-automatic
baler. The continuous reliable machine
in combination with an effective method
of loading results in modern cost
effective waste handling. The superior
press ram guide system includes 2
engineered cutting units which
guarantee a trouble free continuous
operation. A further advantage is the
automatic, pressure-controlled channel
regulation on three sides.

technical data

AP-SK 12 AP-SK 20 AP-SK 28 AP-SK 36
compression force kN 120 200 280 360

specific pressure force n/cm 2 40 41,6 46,6 48

motor 400v kW 4 7,5 11 15
comp. time incl. return sec 40 50 50 50 l
stroke
loading aperture lxw mm 600x520 1000x720 1250x720 1250x920

loading height. mm 1600 1600 1600 1600
600x500x 800x600x 800x750x 1000x750x
bale size wxhxl mm
1200 1200 1200 1200
bale weight kg 80-100 100-150 150-250 250-400

binding 2h 3h 3h 4h
conformity overall dimensions mm 4200x1400x 5100x1500x 5700x1500x 6200x1600x b
1800
2000
1900
wxdxh
2000
total weight kg 1450 2300 3500 4800 h
technical data subject to change
product range
product range

We can supply:

 vertical & horizontal baling presses;
 semi & fully automatic channel baling presses;
 can and barrel presses;
 fully automatic can crushers;
 waste compactors;
 stationary presses;
 tipping devices;
 chain belt conveyors;
 reel splitting machines
