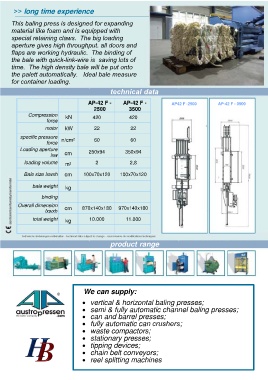

Page 9 - Higgins Balers Ltd with Austropressen Brochure

>> long time experience

This baling press is designed for expanding
material like foam and is equipped with
special retaining claws. The big loading
aperture gives high throughput. all doors and
flaps are working hydraulic. The binding of
the bale with quick-link-wire is saving lots of

time. The high density bale will be put onto
the palett automatically. Ideal bale measure
for container loading.
technical data

AP-42 F - AP-42 F - AP42 F -2500 AP-42 F - 3500
2500 3500
Compression kN 420 420
force
motor kW 22 22
specific pressure
force n/cm² 60 60
Loading aperture 250x94 350x94
lxw cm
loading volume m³ 2 2,8

Bale size lxwxh cm 100x70x120 100x70x120

bale weight kg

binding
Overall dimension cm 870x140x180 970x140x180
lxwxh
total weight kg 10.000 11.000

product range

We can supply:

 vertical & horizontal baling presses;
 semi & fully automatic channel baling presses;
 can and barrel presses;
 fully automatic can crushers;
 waste compactors;
 stationary presses;
 tipping devices;
 chain belt conveyors;
 reel splitting machines
