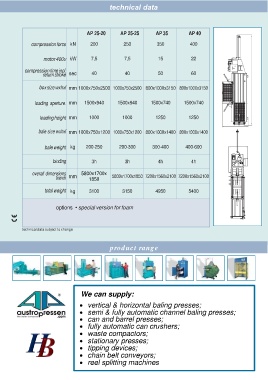

Page 5 - Higgins Balers Ltd with Austropressen Brochure
P. 5

technical data





                                        AP 25-20      AP 25-25        AP 35          AP 40

               compression force  kN     200            250            350           400


                    motor 400v  kW       7,5            7,5            15             22


            compression time incl.
                    return stroke   sec   40            40             50             60


                  box size wxhxl  mm 1000x750x2500  1000x750x2500  800x1000x3150  800x1000x3150


                 loading aperture.  mm   1500x940    1500x940       1500x740       1500x740


                   loading height  mm    1000          1000           1250           1250


                  bale size wxhxl  mm 1000x750x1200  1000x750x1200  800x1000x1400  800x1000x1400


                     bale weight  kg   200-250        200-300        300-400       400-600


                         binding          3h            3h             4h             4h

               overall dimensions    5800x1700x
                          lxwxh   mm     1850      5800x1700x1850  7200x1560x2100  7200x1560x2100


                     total weight  kg    3100          3150           4950           5400



                          options  • special version for foam




           technical data subject to change



                                                  product range










                                     We can supply:

                                     vertical & horizontal baling presses;
                                     semi & fully automatic channel baling presses;
                                     can and barrel presses;
                                     fully automatic can crushers;
                                     waste compactors;
                                     stationary presses;
                                     tipping devices;
                                     chain belt conveyors;
                                     reel splitting machines
   1   2   3   4   5   6   7   8   9   10
