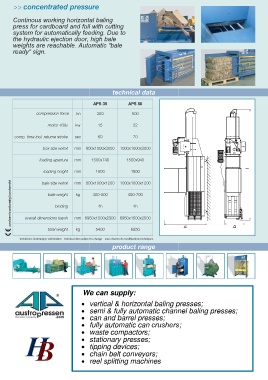

Page 33 - Higgins Balers Ltd with Austropressen Brochure

>> concentrated pressure

Continous working horizontal baling
press for cardboard and foil with cutting
system for automatically feeding. Due to
the hydraulic ejection door, high bale
weights are reachable. Automatic “bale
ready“ sign.

technical data

APS 35 APS 50

compression force kn 350 500

motor 400v kw 15 22

comp. time incl. returne stroke sec 60 70

box size wxhxl mm 800x1000x3000 1000x1000x3000

loading aperture mm 1500x740 1500x940
l
loading height mm 800x1000x1200 1000x1000x1200
1800
1800
conform/conformity/conformité bale weight kg 300-500 400-700
bale size wxhxl
mm

4h
4h
binding
overall dimensions lxwxh

6850
5400
kg
total weight mm 6950x1500x2500 6950x1500x2500 h b
technische änderungen vorbehalten - technical data subject to change - sous réserve de modifications techniques
product range

We can supply:

 vertical & horizontal baling presses;
 semi & fully automatic channel baling presses;
 can and barrel presses;
 fully automatic can crushers;
 waste compactors;
 stationary presses;
 tipping devices;
 chain belt conveyors;
 reel splitting machines
