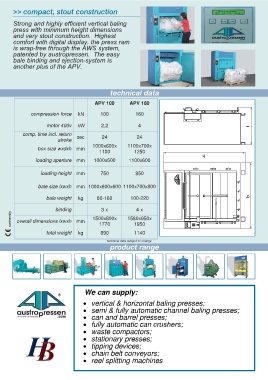

Page 39 - Higgins Balers Ltd with Austropressen Brochure

>> compact, stout construction

Strong and highly efficient vertical baling
press with minimum height dimensions
and very stout construction. Highest
comfort with digital display. the press ram
is wrap-free through the AWS system,
patented by austropressen. The easy
bale binding and ejection-system is
another plus of the APV.

technical data

APV 100 APV 160

compression force kN 100 160

motor 400v kW 2,2 4 t
comp. time incl. return sec 24 24
stroke
1000x600x 1100x700x
box size wxdxh mm
1100 1250
loading aperture mm 1000x500 1100x600 h

loading height mm 750 850

bale size lxwxh mm 1000x600x600 1100x700x800

bale weight kg 80-160 100-220 b

binding 3 x 4 x
conformity overall dimensions lxwxh mm 1500x800x 1580x950x

1770
1950
total weight kg 890 1140
technical data subject to change
product range

We can supply:

 vertical & horizontal baling presses;
 semi & fully automatic channel baling presses;
 can and barrel presses;
 fully automatic can crushers;
 waste compactors;
 stationary presses;
 tipping devices;
 chain belt conveyors;
 reel splitting machines
