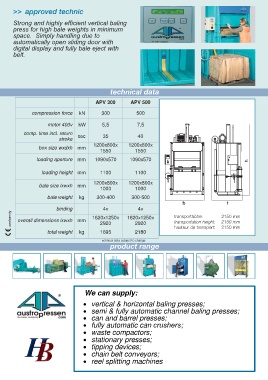

Page 43 - Higgins Balers Ltd with Austropressen Brochure

>> approved technic

Strong and highly efficient vertical baling
press for high bale weights in minimum
space. Simply handling due to
automatically open sliding door with
digital display and fully bale eject with
belt.

technical data

APV 300 APV 500
compression force kN 300 500

motor 400v kW 5,5 7,5
comp. time incl. return sec 35 40
stroke
1200x800x 1200x800x
box size wxdxh mm
1550 1550
loading aperture mm 1090x570 1090x570 h

loading height mm 1100 1100

1200x800x 1200x800x
bale size lxwxh mm
1000 1000
bale weight kg 300-400 300-500
b t
binding 4v 4v
conformity overall dimensions lxwxh mm 1620x1250x 1620x1250x transporthöhe: 2150 mm

2150 mm
transportation height:
2920
2920
hauteur de transport: 2150 mm
total weight kg 1695 2180
echnical data subject to change
product range

We can supply:

 vertical & horizontal baling presses;
 semi & fully automatic channel baling presses;
 can and barrel presses;
 fully automatic can crushers;
 waste compactors;
 stationary presses;
 tipping devices;
 chain belt conveyors;
 reel splitting machines
