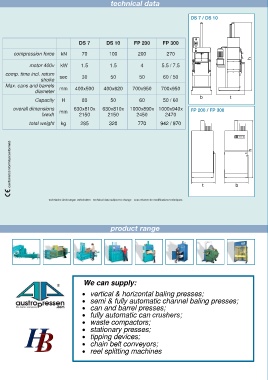

Page 47 - Higgins Balers Ltd with Austropressen Brochure
P. 47

technical data

                                                                                      DS 7 / DS 10





                                    DS 7        DS 10       FP 200       FP 300

       compression force    kN       70          100          200          270
                                                                                                                h
              motor 400v  kW         1.5          1.5          4         5.5 / 7.5

   comp. time incl. return   sec     30           50           50        60 / 50                                           www.austropressen.com
                   stroke
   Max. cans and barrels
                 diameter   mm    400x500      400x620      700x950      700x950
                                                                                          b            t
                 Capacity   H        80           50           60        50 / 60
       overall dimensions         630x810x     630x810x  1000x890x  1000x940x         FP 200 / FP 300
                    lxwxh   mm      2150         2150         2450        2470
              total weight   kg      285         320          770       942 / 970




      conform/conformity/conformité                                                                              h














                       technische änderungen vorbehalten - technical data subject to change - sous réserve de modifications techniques  t  b





                                                  product range






                                                                                                                                 dosen- und fasspressen                   can & barrel presses              presses à bidons et à fûts





                                      We can supply:

                                      vertical & horizontal baling presses;
                                      semi & fully automatic channel baling presses;                                                                    7
                                      can and barrel presses;
                                      fully automatic can crushers;                                                                                   10
                                      waste compactors;
                                      stationary presses;
                                      tipping devices;
                                      chain belt conveyors;
                                      reel splitting machines                                                                                        200

                                                                                                                                                      300
   42   43   44   45   46   47   48   49   50   51   52
