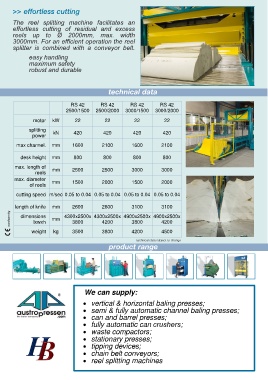

Page 71 - Higgins Balers Ltd with Austropressen Brochure
P. 71

>>  effortless cutting

       The  reel  splitting  machine  facilitates  an
       effortless  cutting  of  residual  and  excess
       reels  up  to  Ø  2000mm,  max.  width
       3000mm. For an efficient operation the reel
       splitter  is  combined  with  a  conveyor  belt.

              easy handling
              maximum safety
              robust and durable





                                                 technical data

                                RS 42         RS 42        RS 42        RS 42
                              2500/1500  2500/2000  3000/1500         3000/2000
                motor   kW        22            22           22           22

              splitting
               power     kN       420          420          420          420
        max channel.  mm         1600         2100         1600          2100


          desk height  mm         800          800          800          800
        max. length of   mm      2500         2500         3000          3000
                 reels
       max. diameter
              of reels   mm      1500         2000         1500          2000

        cutting speed  m/sec  0.05 to 0.04  0.05 to 0.04  0.05 to 0.04  0.05 to 0.04

        length of knife  mm      2600         2600         3100          3100
     conformity  dimensions   mm   4300x2500x  4300x2500x  4900x2500x  4900x2500x

                                                                         4200
                                                           3800
                                              4200
                                 3800
                lxwxh
               weight    kg      3500         3800         4200          4500
                                                              technical data subject to change
                                                 product range










                                      We can supply:

                                       vertical & horizontal baling presses;
                                       semi & fully automatic channel baling presses;
                                       can and barrel presses;
                                       fully automatic can crushers;
                                       waste compactors;
                                       stationary presses;
                                       tipping devices;
                                       chain belt conveyors;
                                       reel splitting machines
