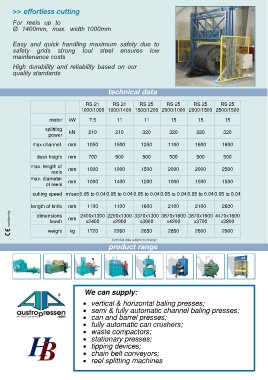

Page 69 - Higgins Balers Ltd with Austropressen Brochure
P. 69

>>  effortless cutting

       For      to:
       Ø      width 1000mm (RS21) and
       � 2000mm, max. width 2500mm (RS25)
       Easy  and  quick  handling  maximum  safety  due  to
       safety  grids  strong  tool  steel  ensures  low
       maintenance costs
       High  durability  and  reliability  based  on  our
       quality standards




                                                 technical data

                                       RS 21       RS 21       RS 25       RS 25       RS 25       RS 25
                                     1000/1000  1000/1400  1500/1200  2000/1000  2000/1500  2500/1500
                       motor    kW       7.5         11          11          15          15          15

                     splitting   kN     210         210         320         320         320         320
                       power
               max channel.  mm         1050        1500        1250        1100        1600        1600


                 desk height  mm        700         900         500         500         500         500
               max. length of   mm      1000        1000        1500        2000        2000        2500
                        reels
               max. diameter   mm       1000        1400        1200        1000        1500        1500
                     of reels

               cutting speed  m/sec 0.05 to 0.04 0.05 to 0.04 0.05 to 0.04 0.05 to 0.04 0.05 to 0.04 0.05 to 0.04

               length of knife  mm      1100        1100        1600        2100        2100        2600
     conformity  dimensions    mm    2400x1300 2200x1300 3370x1300 3870x1600 3870x1600 4470x1600
                                                   x2900
                                       x2400
                                                                                                   x3800
                                                                                       x3700
                                                               x3900
                                                                           x4200
                       lxwxh
                      weight    kg      1720        2260        2650        2850        2600        2900
                                                   technical data subject to change
                                                 product range









                                      We can supply:

                                       vertical & horizontal baling presses;
                                       semi & fully automatic channel baling presses;
                                       can and barrel presses;
                                       fully automatic can crushers;
                                       waste compactors;
                                       stationary presses;
                                       tipping devices;
                                       chain belt conveyors;
                                       reel splitting machines
