technische daten                          technical data                  caractéristiques techniques


                                    KNL 100      KNL 120     KNL 140     KNL 160
                     presskraft
               compression force  kn  100         120         140          160
             force de compression
                   antrieb 400v
                    motor 400v  kw     4           4          5,5          7,5
                   moteur 400v
                    presszyklus
       comp. time incl. returne stroke  sec  25    35          40          40
                  durée du cycle
                presskasten bxhxl                                                                                          www.austropressen.com
                  box size wxhxl  mm  700x550x1700  800x600x1500  800x600x2000  800x750x2200
         dimension du caisson pxhxl
                     füllöffnung
                 loading aperture  mm  1000x700  1200x800   1200x800     1400x800
               ouverture de rempl.
                                                                                                     h1
                       füllhöhe
                  loading height  mm  750         820         820          960                          h
                hauteur de rempl.
                ballengröße bxhxl
                  bale size wxhxl  mm  700x550x1200  800x600x800  800x600x1200  800x750x1200
          dimension des balles pxhxl
              ballengewicht karton
             bale weight cardborad  kg  80-140   120-150     150-200     200-250
             poids de balles carton
                      bindung          3v          3v          3v          3h                             l
                       binding
      conform/conformity/conformité  overall dimensions lxwxh1  mm 3840x1075x1000  3570x1170x1040  4700x1170x1040  4910x1320x1155
                         liage
                  abmaße lxbxh
           overall dimensions lxwxh
             cotes hors-tout lxpxh
                 abmaße lxbxh1
                              mm 3840x1075x1870  3570x1170x1900  4700x1170x2105  4910x1320x1870
             cotes hors-tout lxpxh1
                       gewicht
                    total weight  kg  1050        1240        1370        1660                    b
                        poids
                       technische änderungen vorbehalten - technical data subject to change - sous réserve de modifications techniques


           produktpalette                          product range                       gamme de produits

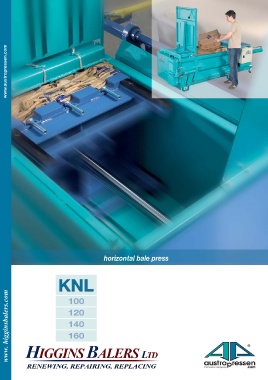

                                                                                                                                                                      horizontal bale press
