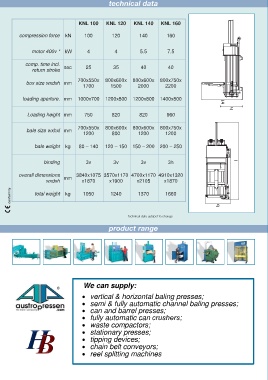

Page 61 - Higgins Balers Ltd with Austropressen Brochure
P. 61

technical data



                                    KNL 100     KNL 120     KNL 140     KNL 160

          compression force  kN       100          120         140         160


               motor 400v *  kW         4           4          5.5         7.5


            comp. time incl.
               return stroke   sec     25          35          40           40                                             www.austropressen.com
                                    700x550x  800x600x  800x600x  800x750x
             box size wxdxh  mm
                                      1700        1500        2000        2200


           loading aperture.  mm  1000x700  1200x800  1200x800  1400x800
                                                                                                     h1
                                                                                                        h
             Loading height  mm       750          820         820         960

                                    700x550x  800x600x  800x600x  800x750x
             bale size wxhxl  mm
                                      1200         800        1200        1200


                bale weight  kg     80 – 140    120 – 150  150 – 200  200 – 250


                    binding            3v          3v           3v          3h                            l


         overall dimensions        3840x1075 3570x1170 4700x1170 4910x1320
                     wxdxh   mm      x1870        x1900       x2105       x1870

      conformity  total weight  kg    1050        1240        1370        1660


                                                                                                  b


                                                          technical data subject to change
                                                 product range






                                                                                                                                 horizontale ballenpresse                horizontal bale press              presse à balles horizontale






                                      We can supply:

                                      vertical & horizontal baling presses;
                                      semi & fully automatic channel baling presses;                                                                 100
                                      can and barrel presses;
                                      fully automatic can crushers;                                                                                  120
                                      waste compactors;                                                                                              140
                                      stationary presses;
                                      tipping devices;                                                                                               160
                                      chain belt conveyors;
                                      reel splitting machines
