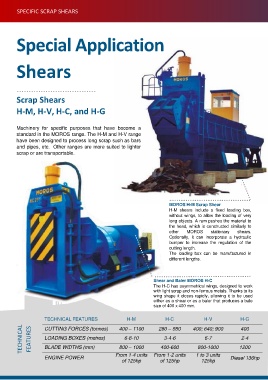

Page 10 - Higgins Balers Ltd with Moros Brochure

SPECIFIC SCRAP SHEARS

Special Application

Shears

……………………………
Scrap Shears

H-M, H-V, H-C, and H-G

Machinery for specific purposes that have become a
standard in the MOROS range. The H-M and H-V range
have been designed to process long scrap such as bars
and pipes, etc. Other ranges are more suited to lighter
scrap or are transportable.

MOROS H-M Scrap Shear
H-M shears include a fixed loading box,
without wings, to allow the loading of very
long objects. A ram pushes the material to
the head, which is constructed similarly to
other MOROS stationary shears.
Optionally, it can incorporate a hydraulic
bumper to increase the regulation of the
cutting length.
The loading box can be manufactured in
different lengths.

Shear and Baler MOROS H-C
The H-C has asymmetrical wings, designed to work
with light scrap and non-ferrous metals. Thanks to its
wing shape it closes rapidly, allowing it to be used
either as a shear or as a baler that produces a bale
size of 400 x 400 mm.

TECHNICAL FEATURES 400 – 1100 280 – 550 400; 640; 900 H-G
H-V
H-C
H-M
TECHNICAL FEATURES LOADING BOXES (metres) 800 – 1000 400-600 800-1000 1200
400
CUTTING FORCES (tonnes)
6-7
2-4
3-4-6
6-8-10
BLADE WIDTHS (mm)
ENGINE POWER From 1-4 units From 1-2 units 1 to 3 units Diesel 136hp
of 125hp of 125hp 125hp
